Staggered Patterns



Site Updates
Die Layouts




click for a larger image


click for a larger image


click for a larger image

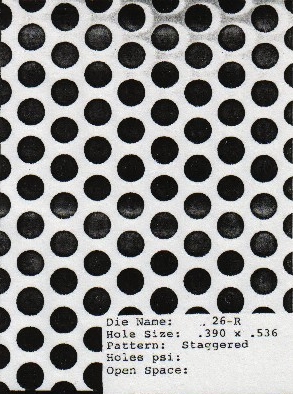

Die Name 26-R

25-R

 7.2-R
Hole Size .390" x .536" .498" x 1.794" .250" - .875"




click for a larger image


click for a larger image


click for a larger image

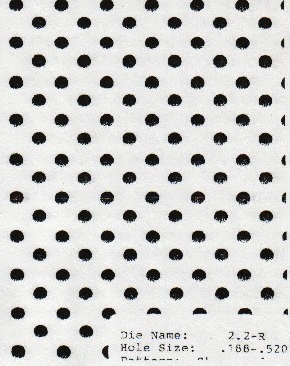

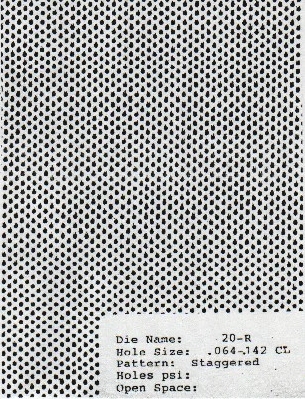

Die Name 22-R 20-R 2.2-R
Hole Size .066" - .200" .064" - .142" .188" - .520"





If you are having difficulty with any aspect of this website or if you have any questions, please feel free to contact First Solution Perforating by telephone or email.
